应用与概述/Brief Introduction：

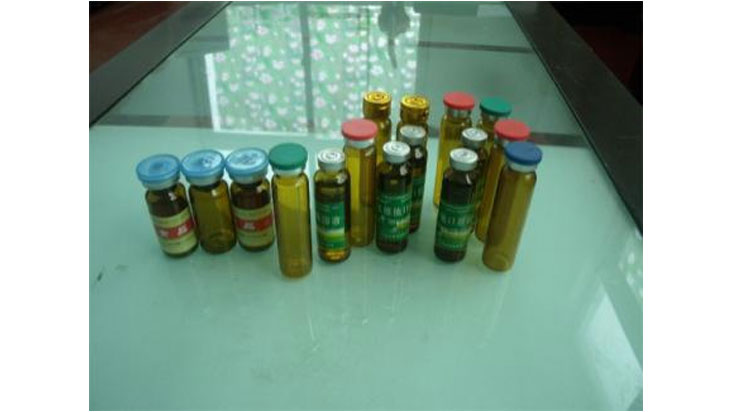

该机组为10-20ml服食液气体装罐生孩子制造线中的一般专用设施。是由洗瓶、烘箱二合一机和装罐封好二合一机所组合成，能重新实现服食液瓶的洗瓶、烘箱、装罐和封好等行为，是服食液生孩子制造工厂更理想型的生活配套专用设施，根本契合GMP规范要求。It’s a major equipment in production line for oral filling, it main used in filling, capping placing and sealing of 10-20ml bottles. Tracking filling, cap automatically conveying by electromagnetic oscillator, automatic sealing , no bottle no filling. Filling and sealing integrated in one machine, advanced design, compact structure and completely comply with requirement of GMP

特性/Characteristic：

◆装量正确，远离渗漏。灌装生产线精密度较高。High filling accuracy.◆变頻无级调压，生孩子车速可调式，供选择择的不同的生孩子车速。Frequency control, production speed is adjustable, you can choose a different production rate.◆所有设备零件均主要包括国外知名品店牌品牌形象。All electrical components are imported famous brands.◆自主表示计数法实用功能。Automatically countting function.◆操纵进行岛国三凌PLC，抗电磁波辐射，运行平稳。Controlled by Mitsubishi PLC◆耐磨性安全，维护清洗快捷。Stable performance, easy maintenance.◆整个机械本身用SUS304不锈碳钢作、与原辅材料遇到一些用316L不锈钢304圆管。整个机械是完全按GMP符合要求方案。Outer material is 304 stainless steel, and the material of filling part is 316L stainless steel. The machine is completely designed according to GMP requirements.

技能性能/technical parameters：

适宜技术参数/Bottle size	10-20ml
生育性能/Capacity	60-90瓶/分钟的时间/60-90bottles/min
烘烤室内温度/Dryer tempreture	100-300°
回收利用河水量/Water wastage	0.5m3/h
自净水耗量/Purifying water consumption	0.3m3/h
装量表面粗糙度/Filling precision	≤1%
电源模块/Voltage	380V/50Hz
工率/Power	33KW
生產线总长/Dimension	3500×1500×1600mm
