不同的用途与概况/ Brief Introduction：

本生产的的线由全自動理瓶机、滚筒机式洗瓶机、灭菌方法干燥的机、眼蓝灵药罐装旋盖机、立柱式标贴纸空气能热泵成，可结束理瓶、水、气的进行维护清洁、风干及嗅氧清洁消毒、罐装、加塞、旋盖、标贴纸等工步，常见用到眼蓝灵药还有其他小服用量液体的联线生产的的，也可单机游戏独立空间用到。完成满足GMP必须。This production line consist of  Automatic Bottle Unscrambler,  Bottle Washing Machine, Tunnel Type Sterilization Drier, eyedrop filling machine, Vertical Labeling machine, can complete bottle sorting, water,and gas cleaning, drying and ozone disinfection, filling, plugging, capping, labeling, mainly used in eyedrops and other small doses of solution, also can be used single independently.　 Meet the GMP requirement.

特性/Characteristic：

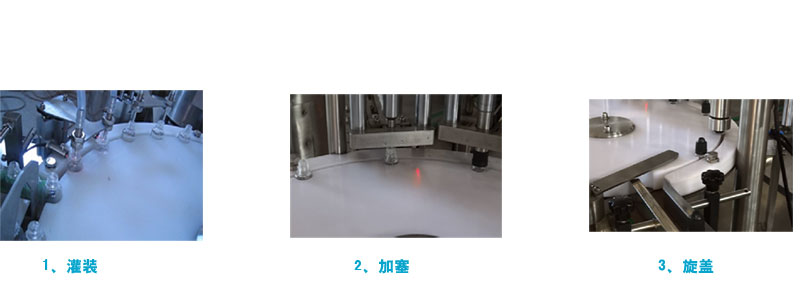

该设备组的设计形式适当合理，开机运行稳定可靠、罐装定位精较高，具中国大陆同行的产品业为先进的水平。截然按照GMP规范标准。     眼药剂包装旋盖机犹是我我司的3、代品牌，电脑操作界面抑制，消化吸收泵包装，由高压气吸机戒手配用气式很好的打塞，维持了固界定和不良好率。选取恒转矩旋盖，有着无瓶不包装、无塞不上盖，无瓶无塞可电脑自动停止时的职能。    It with reasonable structure, higher precision in filling, reaching the advanced level in domestic same business. Meet with requirement of GMP standard completely.eyedrop filling capping machine is a third generation product, human-machine interface operation, filling by peristaltic pump, replace air cylinder with vacuum drived manipulator for plugging, aquire higherstability and percent of pass. Constant torquecap screwing. No bottle no filling, no plug no capping and automatically stop if cap and plug is under-supply.

技木参数指标/technical parameters：

适用于样式/Bottle size	10-20ml
生产的效率/Capacity	40-60瓶/分  70-120瓶/分 40-60/  70-120 bottles/min
污水重压/ Hydraulic Pressure Mpa	0.3Mpa
供供水量 /water consumption	0.5 m3/h
干净干燥解压缩水汽负担 /Clean compressed air pressure	0.6-0.8Mpa
净化进行压缩气流水量/Clean compressed air consumption	300 L/min
电/Voltage	380V/50Hz
电功率/Power	5.5 kw
生产的线总长/Dimension	11000*1500*1900mm
