的主要用途是什么与简单/Brief Introduction：

针剂用清水机械针剂用清水是纯化水经减压蒸馏所得到，病毒内毒物等指标图均契合国内 药典针剂用清水项下规程的饮需要自来水的标准，能作养家糊口物医药公司中各个同时针剂入人体健康内用药的稀释剂。针剂用清水机械核心有针剂用清水配制、配置处理、动图分配比例和生产技术调整等核心模组。

的特点/Characteristic：

◆全系统自动实操步骤的方式，放置技术人员误实操步骤带来了的研发经济损失；Automatic operation mode, to prevent losses of wrong operation of production;◆结构件选取316L木头材质；Components in 316L texture◆带PLC设定的CIP成品；CIP products with PLC control◆登记与保管洗过程中的参数设置与步数；Record and save the parameters of the cleaning process and steps◆无法GMP标准的可追朔性与可说是明性； Meet GMP requirements traceability and accountability◆内置式化设定有无效节约使用服务器；Integrated design can effectively save space◆达到生育和的清洁的加快变换；Implement production and clean fast switching◆巴氏进行消毒清洁消毒，除垢更全面；Babbitt disinfection sterilization, cleaning more thoroughly◆多效蒸溜机：电脑整机管线连到完全适用了系统自动不锈钢焊接，按环境卫生级标准化，管道阀门适用了快卡连到，防止了注谢用水量的重新环境破坏；Multi-effect distillation machine: the machine connection all adopt the automatic welding, according to the level of healthstandard, the valve with fast connection, to eliminate the secondary pollution of water for injection◆纯过热蒸汽发现器：PLC电脑进行的控制表面，可0-100%自主调结至可以的产品的生产数量规范要求；The pure steam generator: PLC man-machine interface operation, can be 0-100% automatically adjust to the need of production requirements◆3D无㓟盲区设计制作：注入饮用水整体干净滤油器满足了GMP3D规定，胶垫为PTPE/EPDM，膈膜阀技术水平重新装时为50度，循坏地埋管重新装设为0.5的长度，设低开为的排放点,并且以湍液状况循坏纯净水的存放和输送机整体，避免 微生物菌种学的形成；3 d design without dead Angle: clean water for injection system satisfies the requirement of GMP3D tube, rubber pad of PTPE/EPDM, when mounted horizontally is 45 degrees, the diaphragm valve loop pipeline installation set as 0.5 grade, set low emission points, and the turbulent fluid state circulating storage and conveying system, prevent microbes breeding◆完全的资料体统：①资料合适GMP追求；②自動化调节体统可合适GAMP5；③3Q资料做到生物农药厂查证的必须要。Complete the file system: (1) documents conform to GMP requirements; (2) automatic control system can meet GAMP5; (3) 3 q documents meet the needs of the pharmaceutical factory to verify◆选用高功效交流变频泵从而输送管和管理滴注污水。Equipped with high performance variable frequency pump used to transport and distribution of water for injection◆双板板换器，在纯化水长的时间循环往复步骤中有着闭式冷却塔功能。Double plate heat exchanger in the purified water cooling effect in the process of long cycle◆打供水贮罐先使用柜式贮罐一方面水平贮罐，满足了传输泵低水位规定，学科设定罐体水流量以避免生物制品膜构成。Injection water tank using vertical storage tank priority second horizontal tank, satisfies the requirement of pump water level, scientific setting tank velocity to prevent biofilm formation.◆主要包括80℃往上隔热间歇开发，以防清水软件系统微生物菌种体出现和的污染。Adopts the design of above 80 ℃ heat circulation, prevent microorganism growth and pollution of water system◆搭载通电的供暖（蒸汽加水供暖）享受过滤水器。Equipped with electric heating, steam heating) breathing filter◆罐底冒水部位加设扇形挡片以减少采拒马河水面，严防电磁。Adding bottom outlet conical baffle to expand in the water, prevent eddy current◆贮罐接入使用使用氢气保护的，保证医药供水店铺及分配权设计送风机，放置异常此回流危害。Tank access using nitrogen protection, maintain positive pressure pharmaceutical water storage and distribution system, prevent the reverse flow of external contamination◆生物制药用纯净水传输泵选用316L装饰管制造出（浸水区域），电镜面抛光并钝化进行处理。Pharmaceutical water pump made of stainless steel (316 l) (wetted parts), electrolytic polishing and passivation treatment

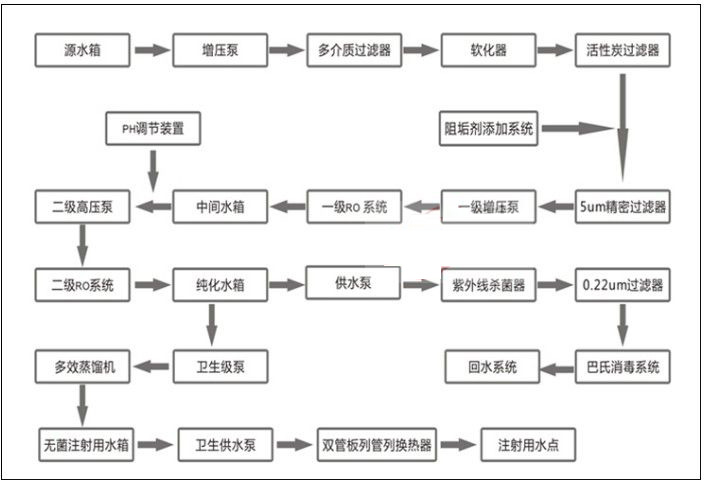

三、整体加工制作工艺 方法图
