领域与筒介：/Purpose and introduction

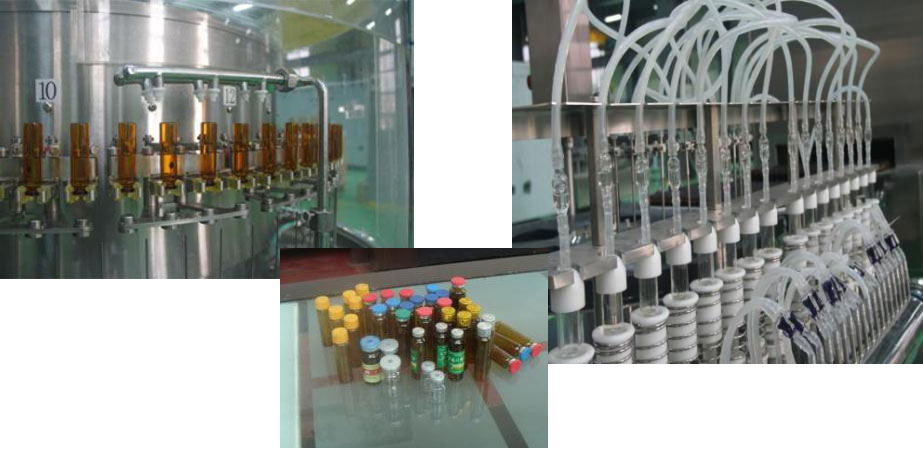

服用方式液洗烘灌轧对接线由双面多普勒彩超波洗瓶机、隧道工程式热气 巡环无菌方法干燥箱、服用方式液包装轧盖机等构造，适于于 5-30ml 等不一样的规 格服用方式液瓶的种植加工。可完工对药物种植加工中安瓿瓶淋水、多普勒彩超波拆洗、冲水、充 气、干燥无菌方法、急冷、包装、轧盖等加工过程方法流程的对接运动。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特征:/characteristic

◆洗瓶机运用机械设备手夹瓶，适用性三种規格的塑料瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶用到水蒸气喷针回转式侦测添加原则，洗涤目的好，不浪费的行为燃料。并设置针架防跳动传动装置，提高自己喷针添加可乐瓶的准确性度，增多断针的问题突发；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶正个雾水内部管道、喷针齐全自主隔开，逃避了交错式严重污染，完全符合GMP国家标准请求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺栓前安装缓存块，有保障螺栓，减小碎瓶功能Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶主要包括整体的美国进口云同步带，接入拨块气流输送口服药液，执行平衡靠普In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烘干箱用到红外线采暖器管，不绣钢采暖器管双层线路采暖器水温匀性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆装罐轧盖机可以配淘瓷泵、不锈钢材质泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆包装无瓶止灌，无瓶不轧盖实用功能。Pieces filling without bottle filling, no bottle no rolling function.◆整线用PLC总操纵、直流变频空调器、液晶屏屏操纵工艺，启用稳定正规正规。液晶屏屏可呈现各单人的启用情况下，各操纵点的静水压、空气压力、传热系数、平均温度等呈现，各按钮开关情况下和错误码呈现，错误码自我认知诊断仪和错误码概述及查出的方式。使整一个出产过程中高于系统全自动操纵，联线具备着三机自动控制静态平衡部件，确定出产平均正规。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.要根据用户的需用，还可供选择：According to the needs of customers, but also available for selection:◆西门子机系统、施耐德开关、西门子、台达等高端品牌操控机系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气学习压力、水的温度及彩超波标准、颗粒物再生颗粒、风力在线视频检查、告警、纪要、打印文件控制系统。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌室丢开器机系统。Mixer ORABS, CRABS, aseptic isolator system.

技术应用技术参数表：technical parameters

适于标准Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
灌装生产线计算精度Filling accuracy(%)	≤ ± 2.5
灌装生产线头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖合格证书率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
